Working Principle of Rigid Chain Lifts

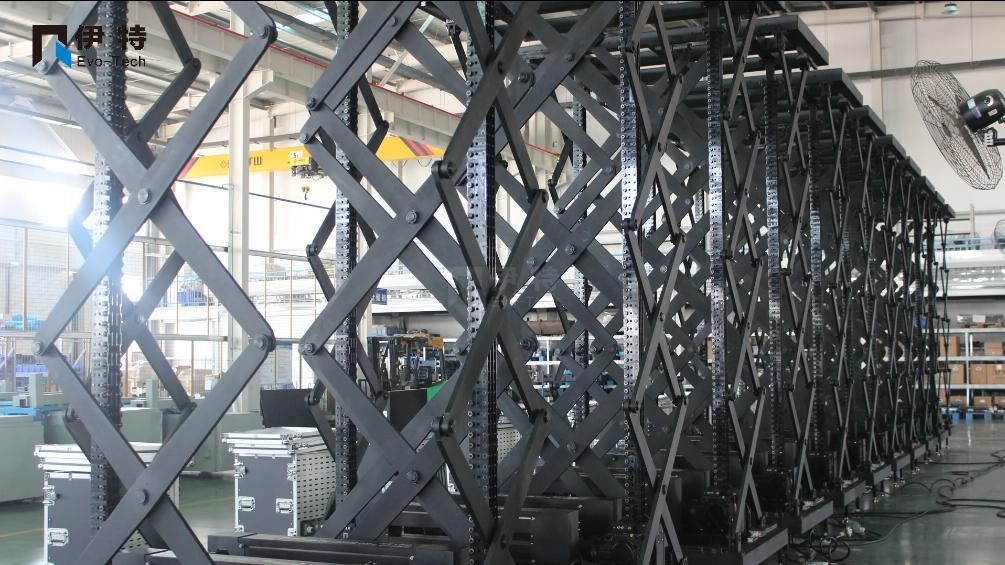

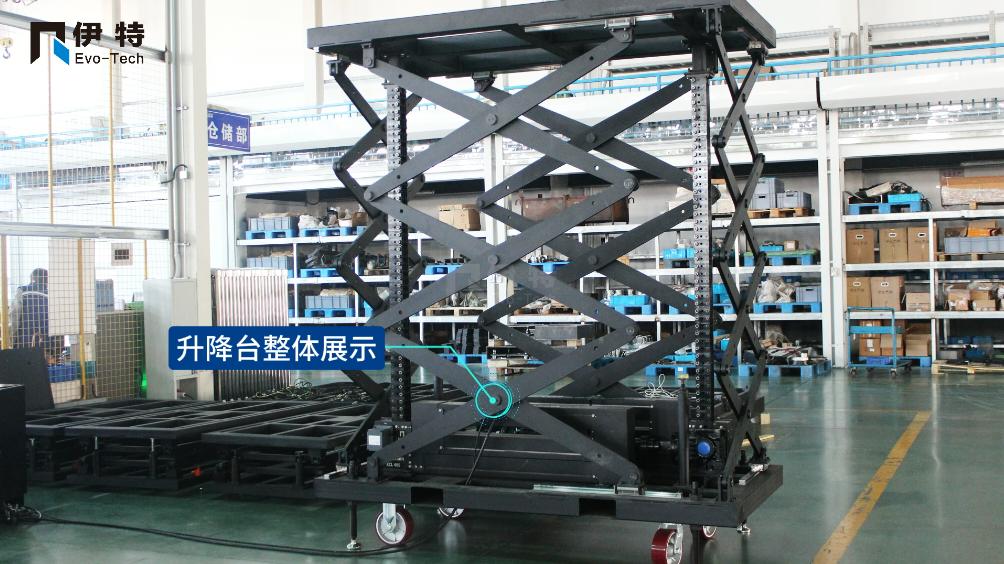

The Evo-Tech Rigid Chain Lift is an advanced mechanical device widely used in stage, industrial, and construction applications. It achieves lifting functions through a sophisticated combination of mechanical and electrical systems, offering high efficiency, stability, and safety. Below is a detailed explanation of its working principle:
- Basic Structure
The rigid chain lift primarily consists of the following key components:
- Drive System: Includes a motor, reducer, and drive sprocket.
- Chain System: Composed of high-strength rigid chains for power transmission and load support.
- Guide Rail System: Ensures stable vertical movement of the lift.
- Control System: Enables precise lifting operations through electrical control.
- Safety Devices: Include limit switches, emergency brakes, and other mechanisms to ensure operational safety.
- Drive System
The drive system is the core of the Evo-Tech Rigid Chain Lift, providing the necessary power. The motor transmits torque through the reducer to the drive sprocket, which engages with the rigid chain to initiate movement. The motor’s speed and torque can be precisely regulated via a frequency converter, ensuring smooth and accurate lifting.

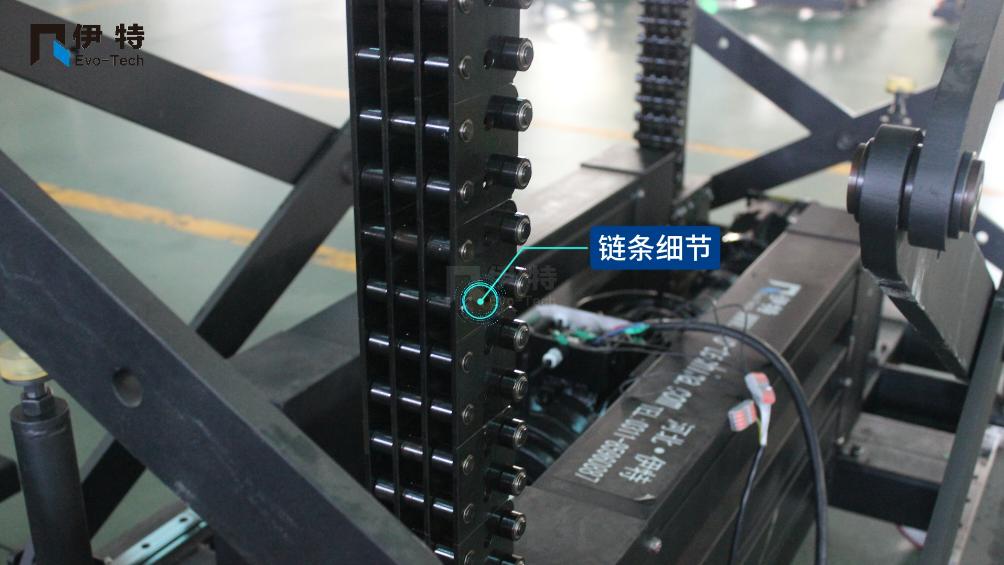

- Chain System
The rigid chain is a critical component, made of high-strength metal links with exceptional tensile strength and wear resistance. One end of the chain is fixed to the lift, while the other is anchored to the base or frame. As the drive sprocket rotates, the chain is pulled, raising or lowering the platform.

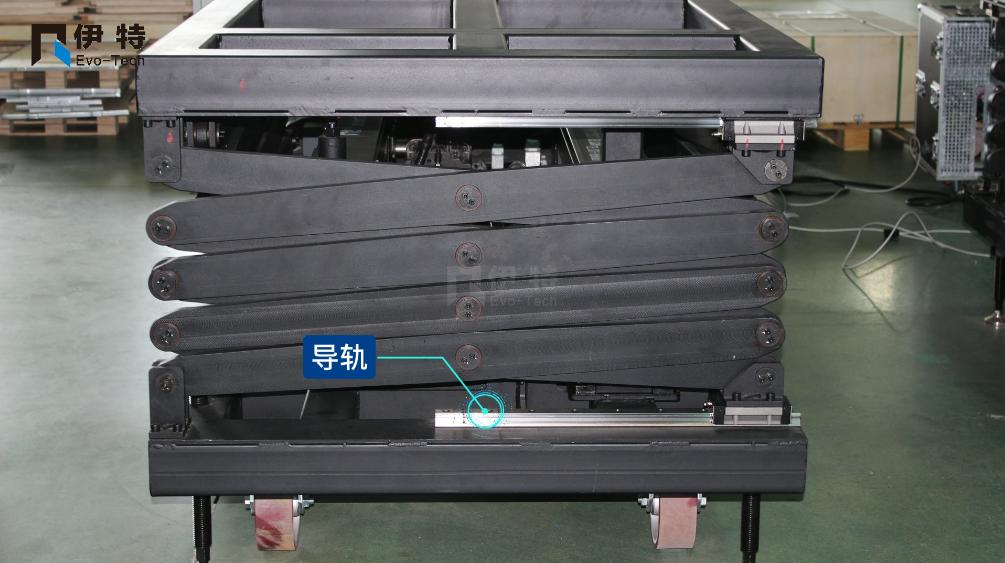

- Guide Rail System
The guide rail system ensures stable vertical movement of the lift. Constructed from high-strength steel, the rails are installed on both sides of the lift. The platform moves smoothly via sliders or rollers in contact with the rails. The precision of rail design and installation directly impacts operational stability and safety.

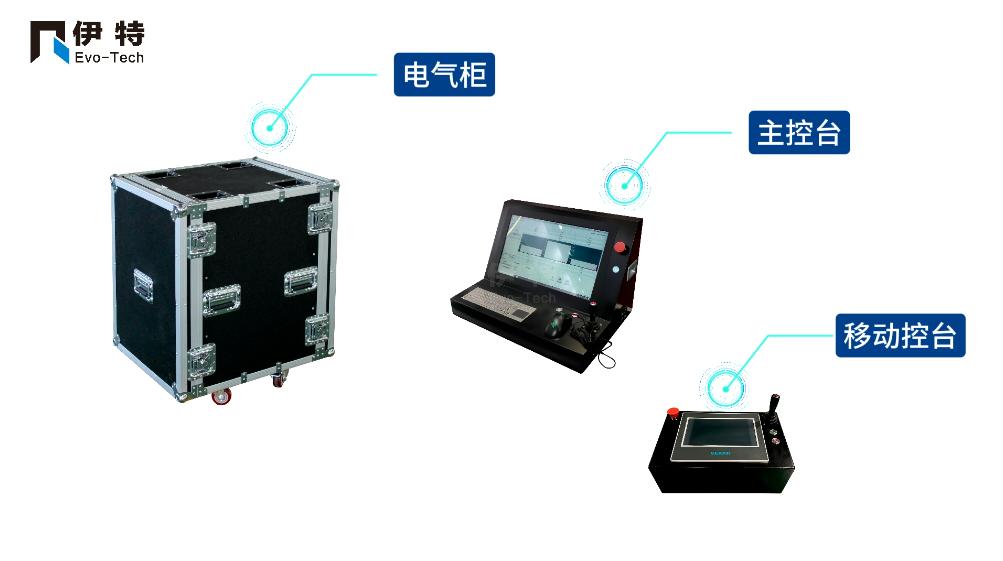

- Control System
The control system acts as the "brain" of the rigid chain lift, utilizing electrical components and software for precise operation. Key functions include:
- Precise Positioning: Encoders and sensors enable millimeter-level accuracy in platform positioning.
- Speed Control: The frequency converter adjusts motor speed for smooth lifting and lowering.
- Safety Protection: Limit switches and emergency brakes ensure immediate shutdown in abnormal conditions.
- Safety Devices
Safety mechanisms are essential for reliable operation, including:

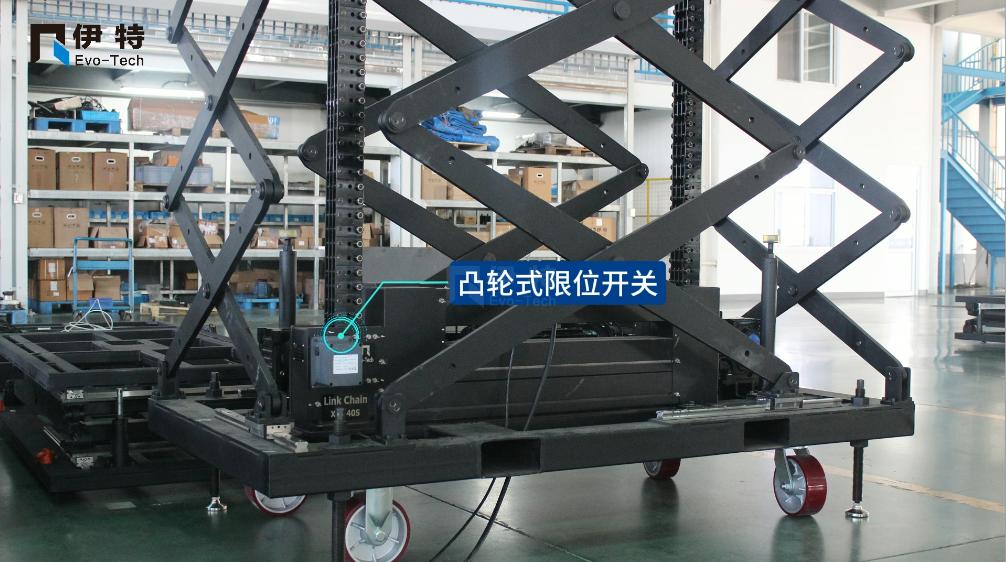

- Limit Switches: Prevent overtravel by restricting the platform’s upper and lower movement range.
- Emergency Brakes: Allow manual or automatic activation to halt the lift instantly in emergencies.
- Overload Protection: Cuts power when the load exceeds rated capacity, safeguarding equipment and personnel.
Operational Process
- Startup: The operator activates the lift via the control panel, initiating motor rotation. Power is transmitted through the reducer to the drive sprocket.
- Lifting/Lowering: The sprocket rotates, driving the rigid chain and moving the platform vertically. The guide rails ensure stable motion.
- Stopping: Upon reaching the preset position, the control system halts the motor using signals from limit switches and encoders.
- Emergency Braking: In emergencies, the operator or automated safety systems trigger the emergency brake for an immediate stop.
